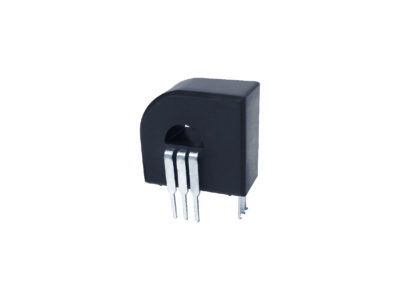

Description
Series
NxxNEP
Measurement
Current
Nominal Range
±25…125 A
Second. Output Signal
Current ratio output(mA)
Conversion Ratio
1:1,000/1:2,0002Current ratio output(mA)
Primary Signal
AC, DC, Pulse+ DC
Supply Voltage Range
±12 …15 V
Non-Linearity Error
<0.15 %
Op. Temperature
-25 °C / 85 °C
Technology
Close loop Hall effect
Mounting
PCB
Applications
Home appliances
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery management systems
Uninterruptible power supplies (UPS)
Switched-mode power supplies (SMPS)
Overcurrent protections
Short circuit protections
