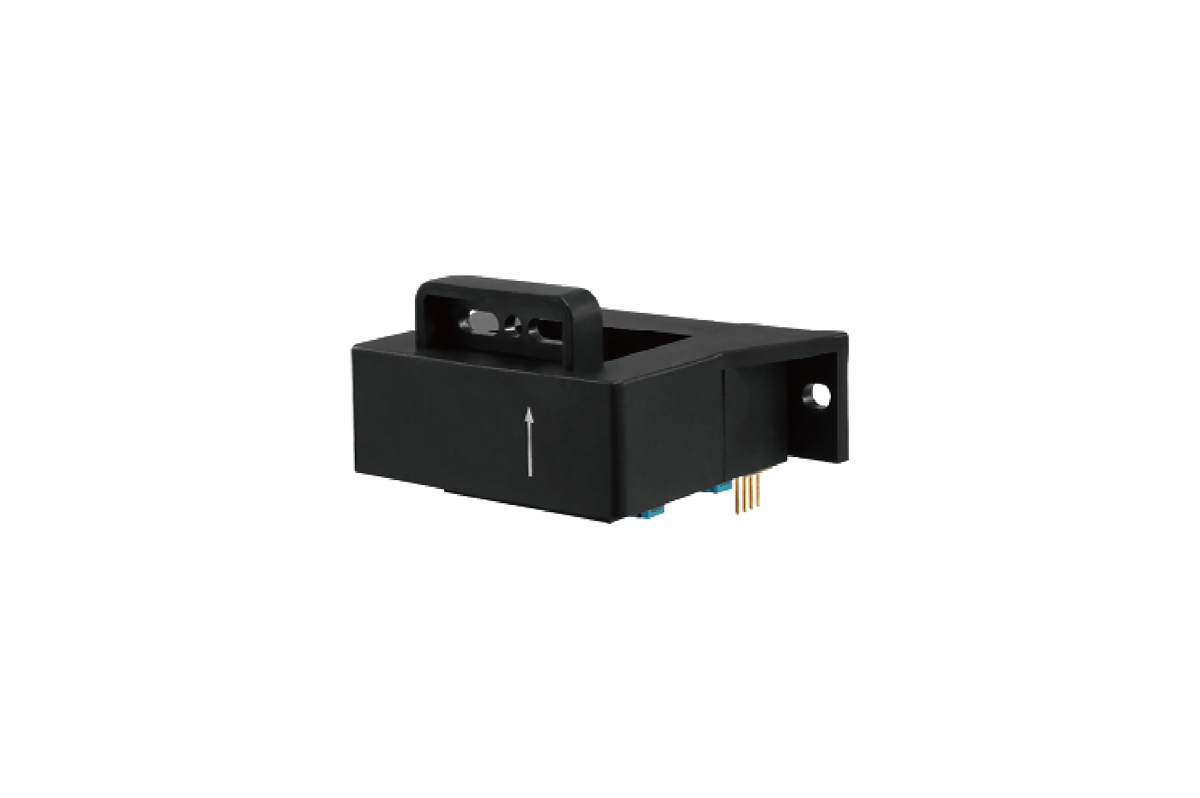

K04 Open-Loop current sensor



The K04 series is a Open-Loop current sensor based on the Hall effect. It provides electronic measurement of DC, AC or pulse currents at same time, and their combinations with galvanic between the primary (high current) and secondary circuits.

Description

Series

K04

Measurement

Current

Nominal Range

±200…1500 A

Second. Output Signal

Voltage

Second. Output Signal Value

±4 V2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±15 V

Non-Linearity Error

<±1 %

Op. Temperature

-10 °C / 80 °C

Technology

Open loop Hall effect

Mounting

PCB

Applications

Frequency converters
Servo motor drives
Battery management systems
Welding applications



K04 Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

Output (V)

4 V

Supply voltage
