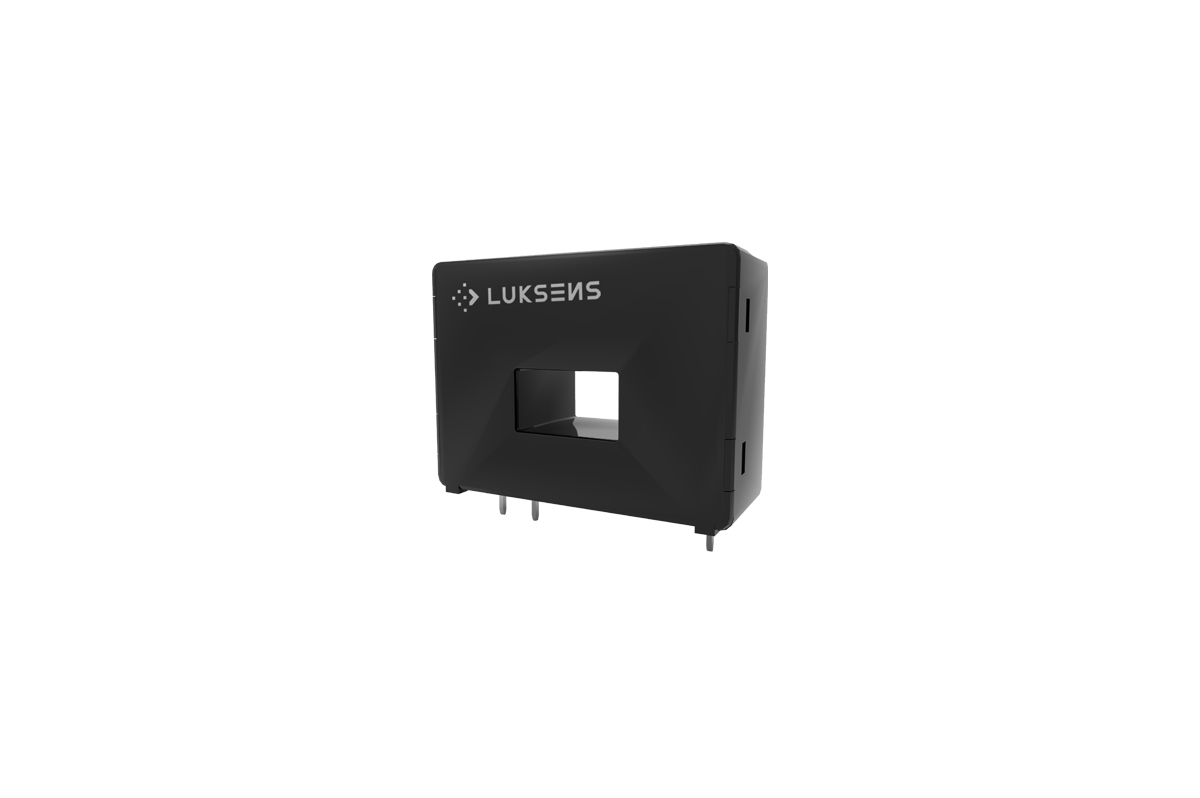

NxxA Close-Loop current sensor



The NxxA series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Description

Series

NxxA

Measurement

Current

Nominal Range

±25…100 A

Second. Output Signal

Current ratio output(mA)

Conversion Ratio

1:1,000/1:2,0002Current ratio output(mA)

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±12 …15 V

Non-Linearity Error

<0.15 %

Op. Temperature

-40 °C / 85 °C

Technology

Close loop Hall effect

Mounting

PCB

Applications

Home appliances
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery management systems
Uninterruptible power supplies (UPS)
Switched-mode power supplies (SMPS)
Overcurrent protections
Short circuit protections



NxxA Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

, ,

Output (V)

1/1000 (A), 1/2000 (A)

Supply voltage
