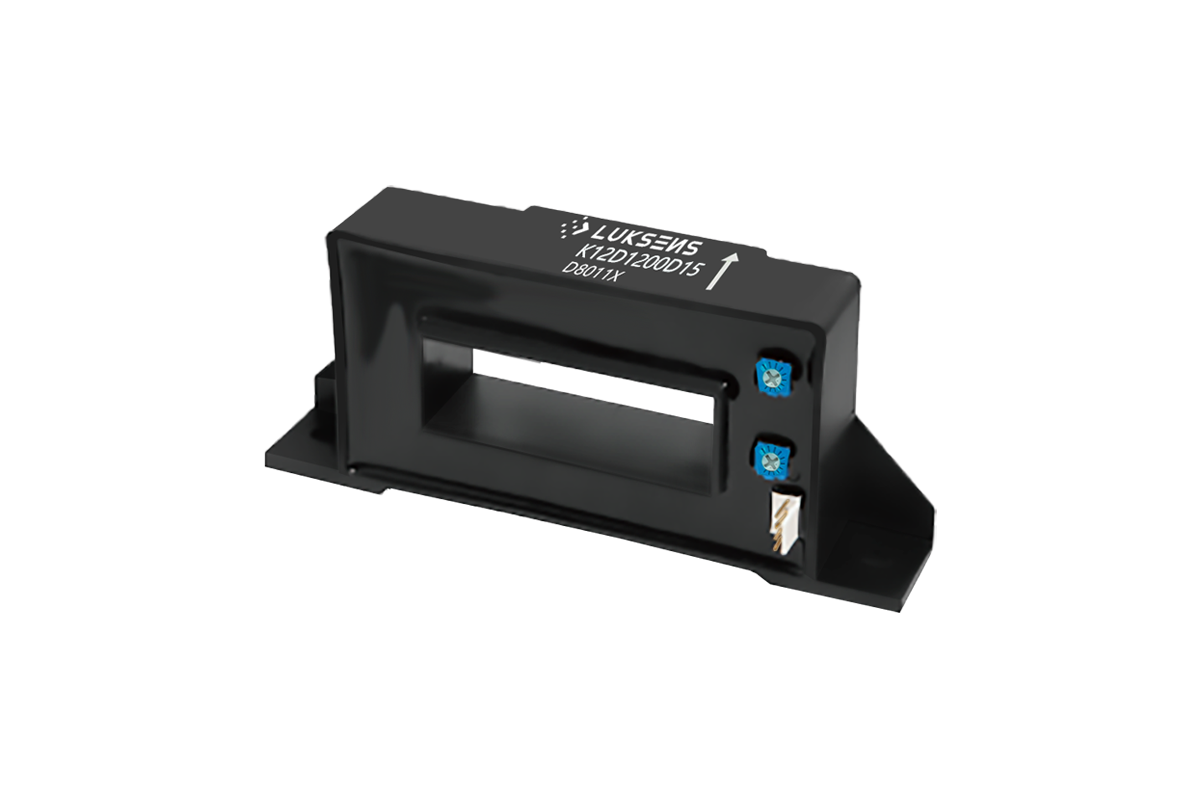

K12 series Open-Loop current sensor



The K12 series is an Open-Loop current sensor based on the Hall effect. It provides electronic measurement of DC, AC or pulse currents at same time, and their combinations with galvanic between the primary (high current) and secondary circuits.

Categories: ,

Description

Series

K12

Measurement

Current

Nominal Range

±500…2500 A

Second. Output Signal

Voltage

Second. Output Signal Value

±4 V2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±15 V

Non-Linearity Error

1 %

Op. Temperature

-40 °C / 85 °C

Technology

Open loop Hall effect

Mounting

Terminal plug

Applications

Frequency converters
Servo motor drives
Battery management systems
Welding applications



K12 Series-Datasheet-Luksens
