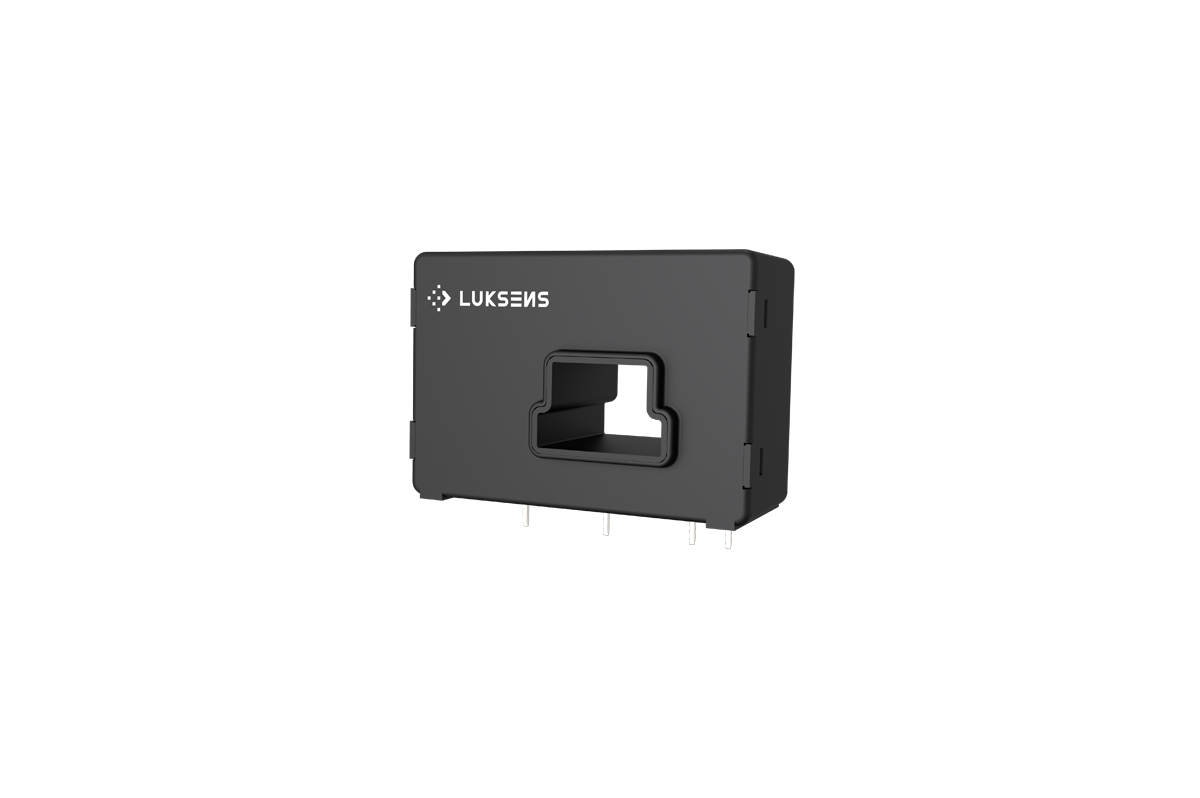

N125P Close-Loop current sensor

The NxxP series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Description

Series

N125P

Measurement

Current

Nominal Range

±125 A

Max. Measuring Range

±200 A

Second. Output Signal

Current ratio output(mA)

Conversion Ratio

1:1,000

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±12…15 V

Non-Linearity Error

<0.15 %

Op. Temperature

-40 °C / 85 °C

Technology

Close loop Hall effect

Mounting

PCB

Applications

Home appliances
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery management systems
Uninterruptible power supplies (UPS)
Switched-mode power supplies (SMPS)
Overcurrent protections
Short circuit protections



NxxP Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

Output (V)

1/1000 (A)

Supply voltage
