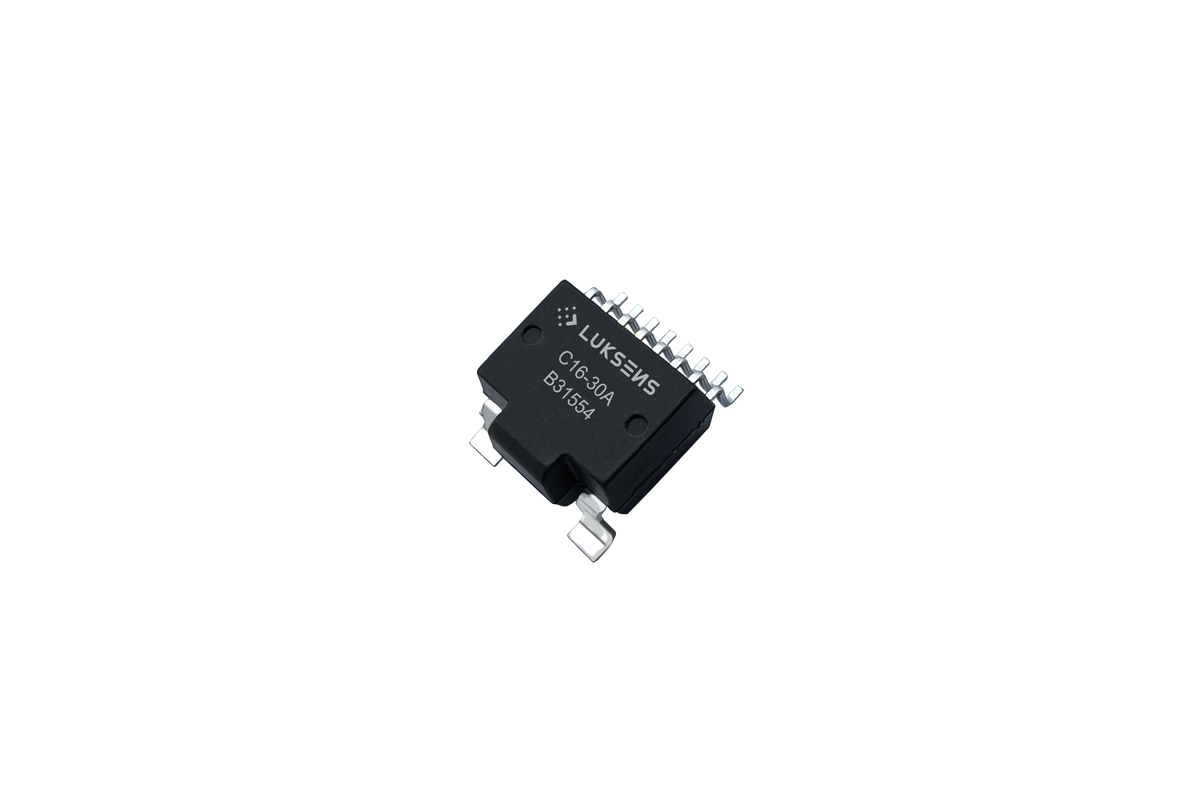

The C16-XXA series current sensor is a high-insulation, micro-core-based device that uses open-loop hall
technology for accurate, fast measurements. It is available in two supply versions (5V and 3.3V DC), with a measuring range up to 30A. This SMT mountable sensor is ideal for integrating onto PCBA. It provides a compact, economical and accurate solution for AC or DC current detection, and is an ideal choice for motor control, load detection and management, power supply and DC-DC converter control, and inverter control.
Series
C16
Measurement
Current
Nominal Range
±8 A
Second. Output Signal
Voltage
Second. Output Signal Value
100 mV/A2
Primary Signal
AC, DC, Pulse+ DC
Supply Voltage
5 V
Non-Linearity Error
<±0.8%
Op. Temperature
-40 °C / 125 °C
Technology
Open loop Hall effect
Mounting
PCB
Applications
Motion control
DC-DC converter
Small drives
HVAC Inverters
Home appliances
Solar Inverters
Battery detection
