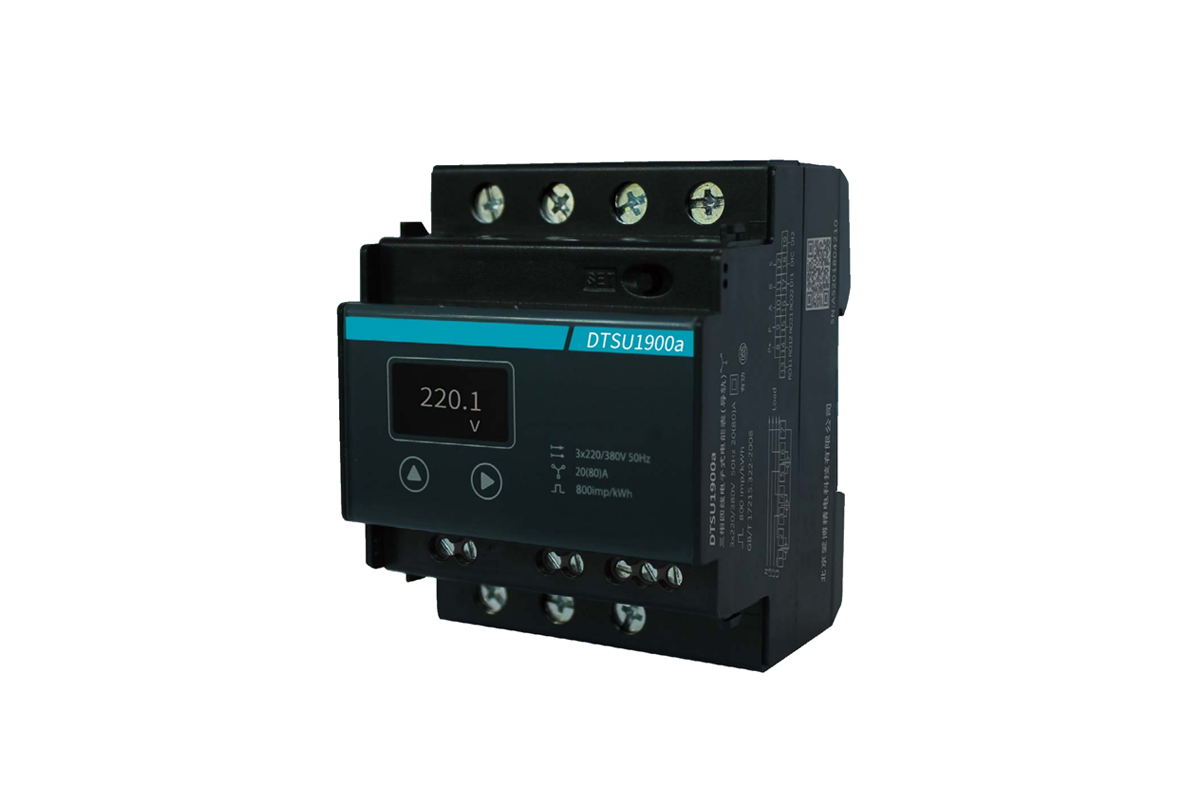

DTSU1900a Three-Phase Energy Meter

DTSU1900a is a multifunctional three-phase rail-mounted electronic power meter. It is mainly oriented to the metering management applications in public buildings, industrial plants, smart microgrids, etc. It is dedicated to solving the application needs of sub-distributed electricity metering cost management, energy management, load control, and so on. It has the functions of accurate power parameter measurement, bidirectional power measurement, alarm and harmonics. Direct access current up to 80A.

Description

Series

DTSU1900a

Basic Parameter

1. Accurate Measurement Voltage, Current, Power, Power Factor, Frequency,etc
2. THD and Individual Harmonics to 31st
3. Voltage Unbalance, Current Unbalance
4. 0.2% Accuracy on Voltage and Current
5. Bi-Directional Energy: Import Energy, Export Energy
6. Over or Under Setting Limit
7. IEC62053-22 0.5S
8. Power Measurement Parameters can be Set
9. TOU, Four Tariffs, 14 Schedules

Applications

Commercial Metering
Intelligent Building
Railway Transit
Apartment
University/School/Hotel
Energy Management System
Power Distribution
Energy-Saving System
