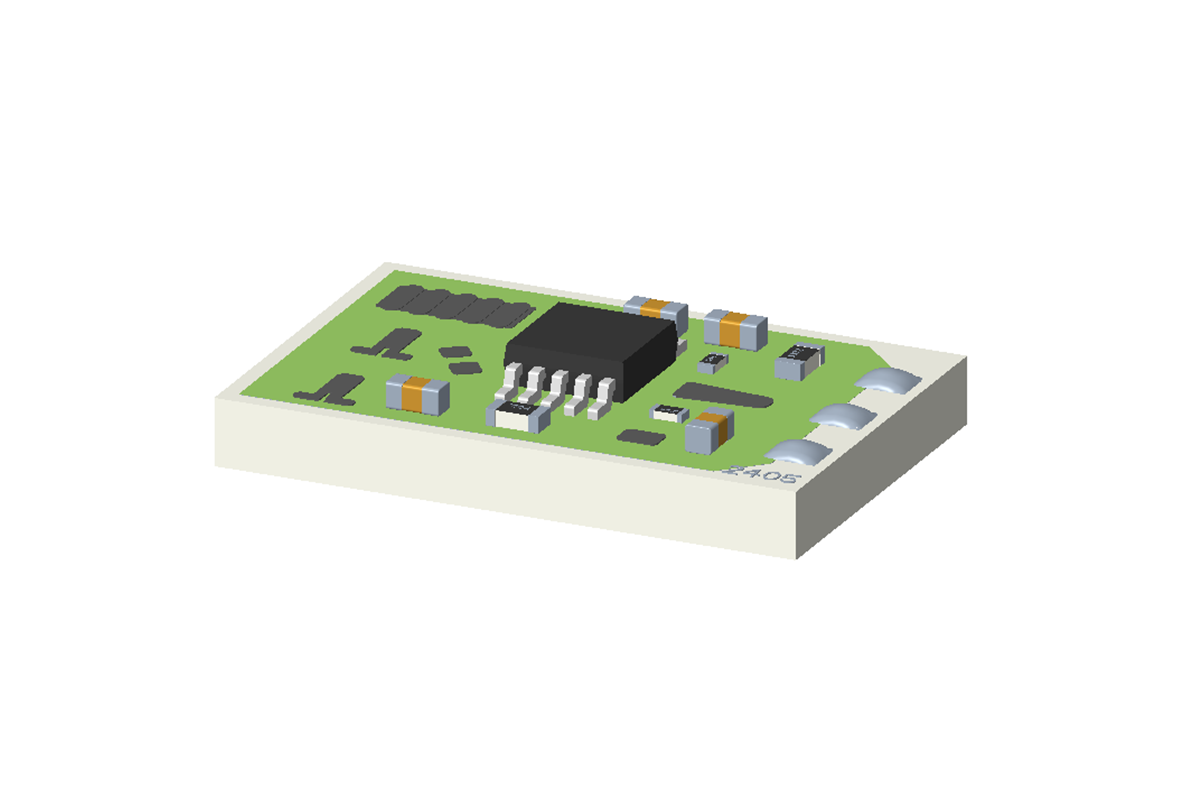

PSRT piezoresistive ceramic pressure sensor

E-Connector: Pre-tinned pads, Wires 50.8mm
Range: 0…50 bar
Output: 0.5-4.5V ratio 5VDC, 0.5-2.5V ratio 5VDC, 0.5-3.5V ratio 5VDC
Type: Absolute, Relative

The PSRT pressure sensors feature a monolithic ceramic cell and operate based on the piezoresistive principle. The Wheatstone bridge is screen-printed on the ceramic cell using thick film technology, with signal conditioning electronics providing integrated amplified output. Pressure and temperature calibration is handled electronically via the on-board ASIC, with offset and span corrections for temperature variations. The sensors offer long-term stability, are EMC-compliant, and include an EEPROM for traceability and custom calibration. The Al2O3 ceramic ensures excellent resistance to aggressive media.

Categories: , ,

Description

Electrical connection

Wires 50.8 mm, Pre-tinned pads
Output type

0.5-2.5VDC, 5VDC, 0.5-3.5VDC, 5VDC, 0.5-4.5VDC ratio, 5V
Pressure range

0…50 bar
Pressure type

Relative, Absolute

Features

  • Outstanding corrosion and abrasion resistance
  • Fully integrated signal conditioning
  • Compliant with EMC standards
  • Thermally compensated for enhanced performance

Suitable for the following:

  • Process control
  • Environmental control
  • Meters and instruments
  • Medical instrument
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Electrical connection

Wires 50.8 mm, Pre-tinned pads
Output type

0.5-2.5VDC, 5VDC, 0.5-3.5VDC, 5VDC, 0.5-4.5VDC ratio, 5V
Pressure range

0…50 bar
Pressure type

Relative, Absolute
