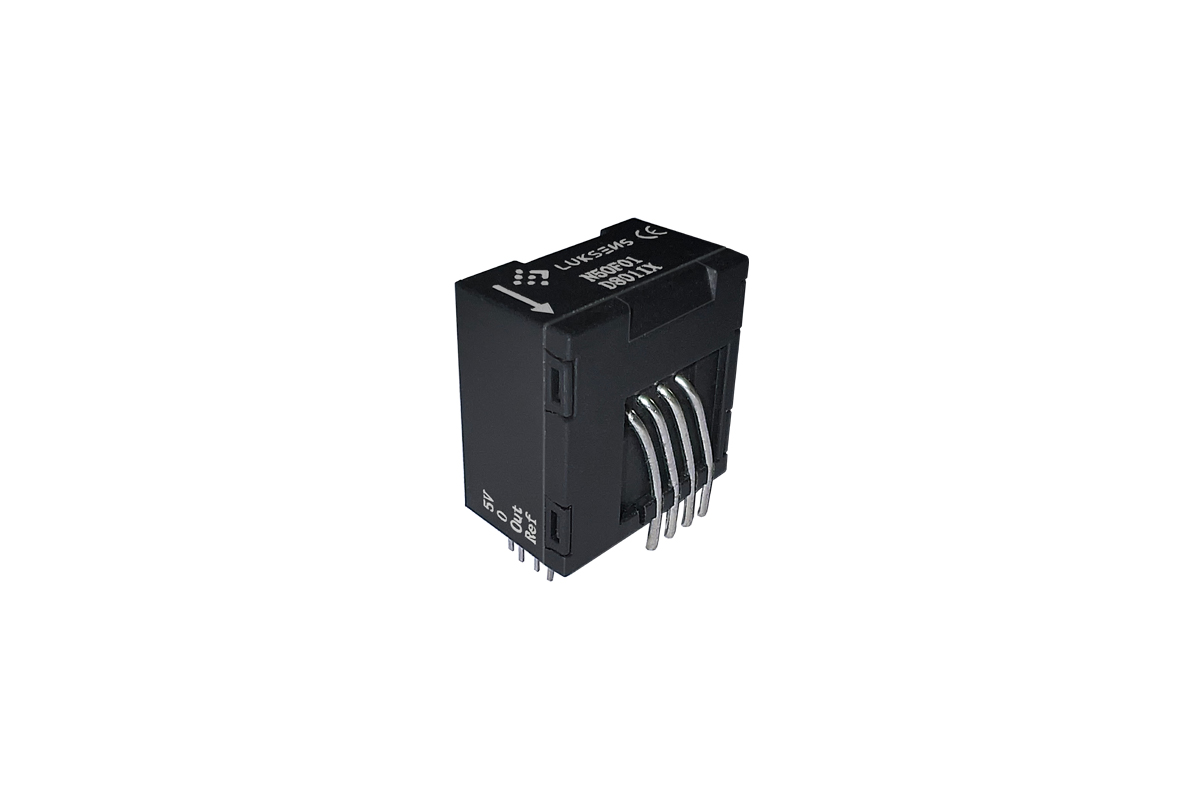

NxxF01 Close-Loop current sensor



The NxxF01 series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Description

Series

NxxF01

Measurement

Current

Nominal Range

±6…50 A

Second. Output Signal

Voltage

Second. Output Signal Value

2.5 V±(0.625±0.5%)2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

5 V

Non-Linearity Error

<0.7 %

Op. Temperature

-40 °C / 105 °C

Technology

Close loop Hall effect

Mounting

PCB

Applications

Solar inverters
Servo motor drives
Uninterruptible power supplies
Battery management systems
Welding applications



NxxF01 Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

, , ,

Output (V)

2.5±0.625 V

Supply voltage
