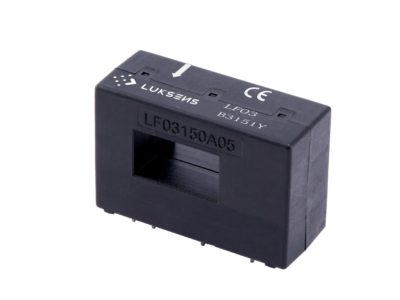

LF01-06 Fluxgate current sensor

The LF01 Series fluxgate current sensor incorporates dynamic fluxgate detection technology. Its design is simple and practical, with the ability to inhibit high temperature drift. Fluxgate technology makes use of the phenomenon of magnetic core saturation to modulate the measured magnetic field, transforming it into an electric field and thus, completing the magnetic field measurement process.

Specifications

Description

Series

LF01

Measurement

Current

Nominal Range

±6 A

Measuring Range

±20 A

Second. Output Signal

Voltage

Second. Output Signal Value

2.5±0.625V @IPN2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

4.75 – 5.25 V

Non-Linearity Error

0.1 %

Op. Temperature

-40 °C / 105 °C

Technology

Fluxgate

Mounting

PCB

Applications

Solar inverters

Servo motor drives

Uninterruptible power supplies(UPS)

Battery management system

Welding applications



LF01-Datasheet-Luksens
