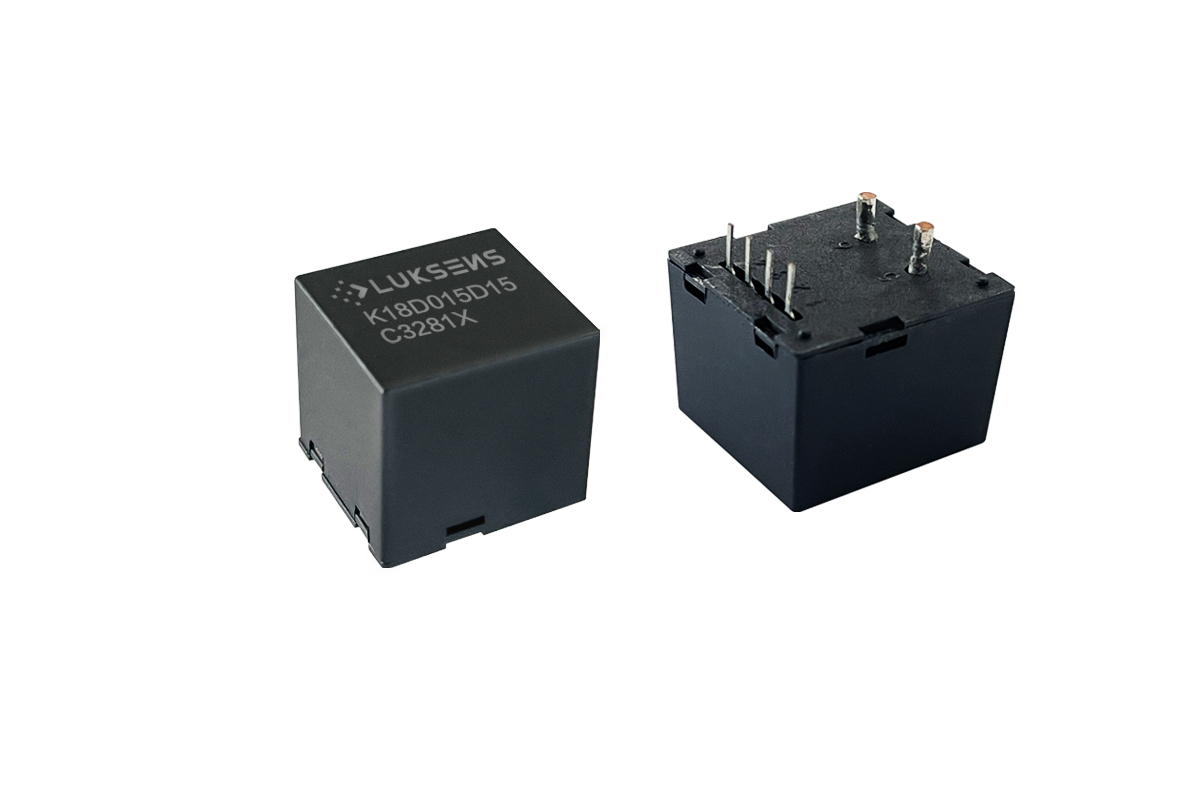

K18D005D15 Open-Loop current sensor

The K18 series is an open-loop current sensor based on the Hall effect. It simultaneously offers an electronic measurement of direct, alternating or pulsed current and their combinations with galvanic connection between the primary (high current) and the secondary circuit. The PCB mount design is suitable for general purpose low power applications.

Description

Series

K18D005D15

Measurement

Current

Nominal Range

±5 A

Measuring Range

±15 A

Second. Output Signal

Voltage

Second. Output Signal Value

±4 V2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±15 V

Non-Linearity Error

0.8 %

Op. Temperature

-30 °C / 80 °C

Technology

Open loop Hall effect

Mounting

PCB

Applications

servo controller

frequency converter

Uninterruptible Power Supply (UPS)

Battery and rechargeable battery operation

Welding applications
