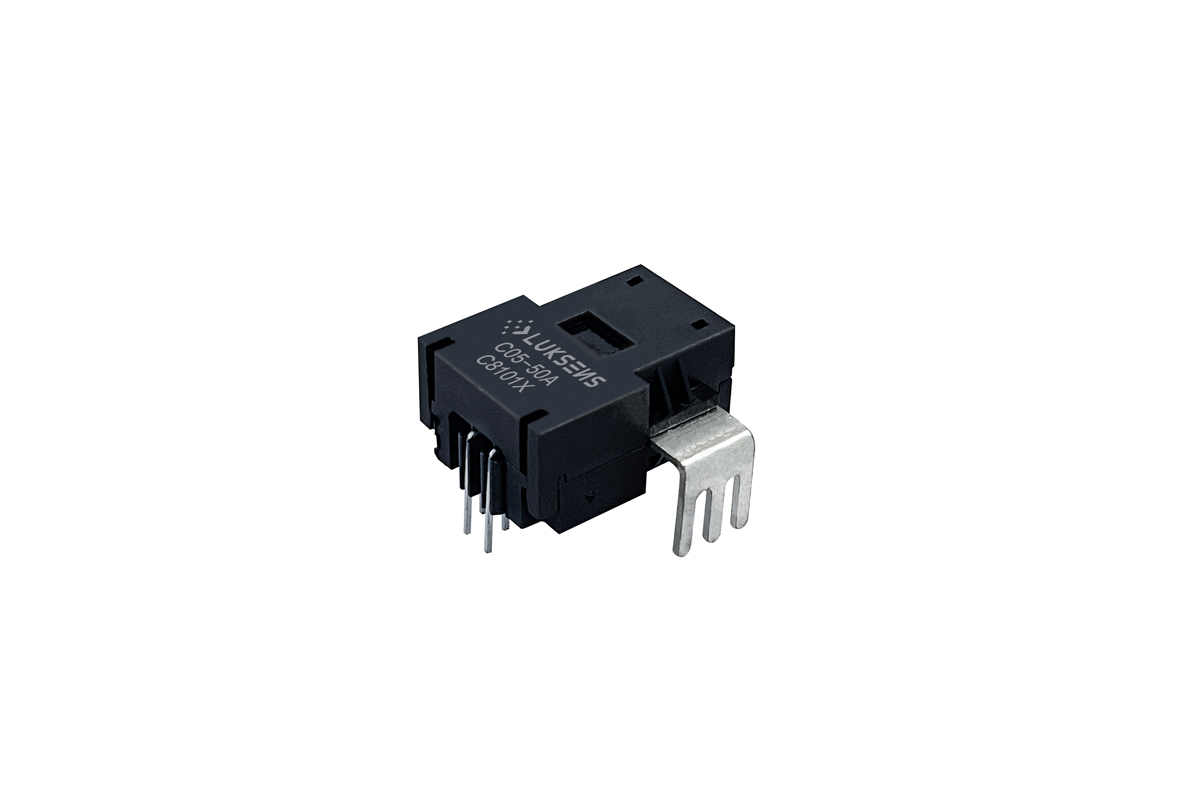

C05 series Open-Loop

The C05 Series provides efficient and precise sensor solutions for AC, DC, and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector, and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Description

Series

C05

Measurement

Current

Nominal Range

±10…50 A

Second. Output Signal

Voltage

Second. Output Signal Value

2.5±0.8 V @IPN2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±5 V

Non-Linearity Error

0.5 %

Op. Temperature

-40 °C / 105 °C

Technology

Open loop Hall effect

Mounting

PCB

Applications

Home appliances

Load detections and management

Intelligent power/battery management systems

Welding applications

Variable speed drives

Combiner box



C05 Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

, , , ,

Output (V)

2.5±0.8 V

Supply voltage
