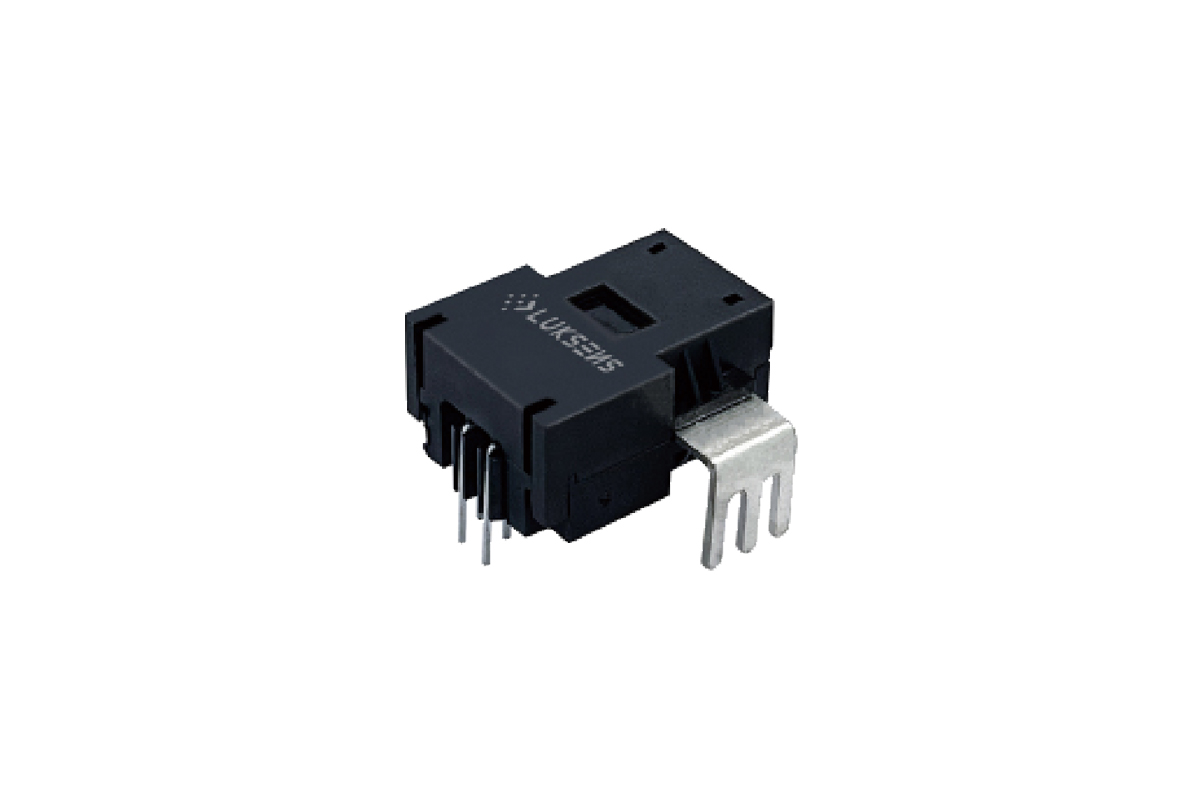

C05-80…120A Open-Loop



The C05-80…120A series current sensor provides efficient and precise sensor solutions for AC, DC and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Series

C05-80…120A

Measurement

Current

Nominal Range

±80…120 A

Second. Output Signal

Voltage

Second. Output Signal Value

6.67…10 mV/A

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±5 V

Non-Linearity Error

±0.5 %

Op. Temperature

-40 °C / 105 °C

Technology

Open loop Hall effect

Mounting

PCB

Applications

Home appliances
Load detections and managements
Intelligent power/battery management systems
Welding applications
Variable speed drives



C05-80…120A Series-Datasheet-Luksens
